X-600 Medium Size Digital Convection PCB Pre-heater

The X-600 PCB Pre-heater is extremely accurate. It has user adjustable off-set and unique acceleration mode to speed-up initial warm-up from a cold start at room temperature. The unit has a small foot-print to reduce the workspace required for SMT Rework and Repair. This design emphasizes on the accurate process control for the rework tasks.. Pre-heater Unit is microprocessor controlled to maintain accuracy and to extend heating element life.

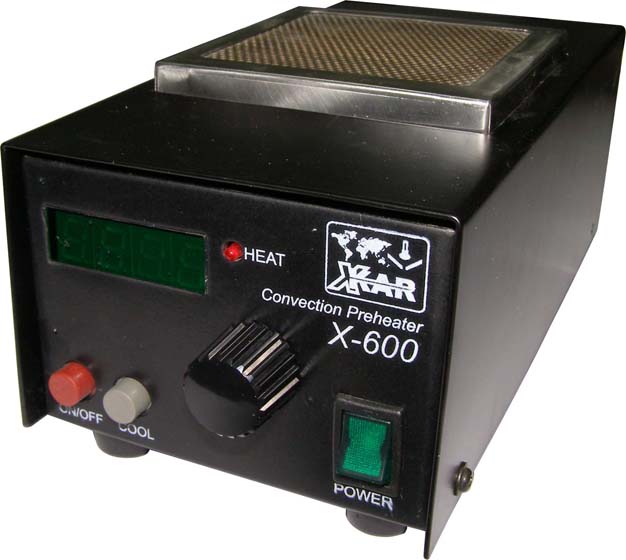

X-600 Medium size Digital Convection PCB Pre-heater

System Features:

Microprocessor controlled by powerful firmware.
High power, small area pre-heat chamber.
ESD safe.
Close loop temperature PID control maintaining set temperatures with high accuracy and extending heaters life.
"Cool" function
FOCUS link to connect with FOCUS top hot air systems.
X-DataStore to connect with a PC.
LED display: 4x7 segments.

System includes:

X-600 Unit
System Manual
Warranty Card

Available models:

X-600/230 - Small Digital Convection PCB Pre-heater, Supply Voltage 207-242V.
X-600/115 - Small Digital Convection PCB Pre-heater, Supply Voltage 104-127V.

Technical Specifications:

MODEL	X-600/230	X-600/115
Input Voltages	207-242V AC	104-127V AC
Power Consumption	600 W
System dimensions (W x H x D)	4.1" x 3.7" x 7.9" (105 x 95 x 200 mm)
Chimney dimension	3.5" x 3.5" (90 x 90 mm)
Preheat Temperature measured on a PCB	140-302 °F (60 -150 °C)
Average PCB preheat time to 150°C	Less than 2 min.
